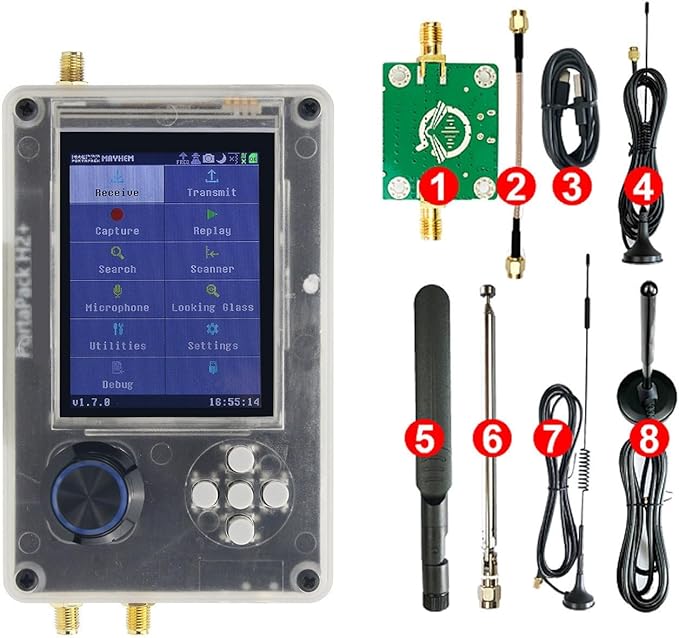

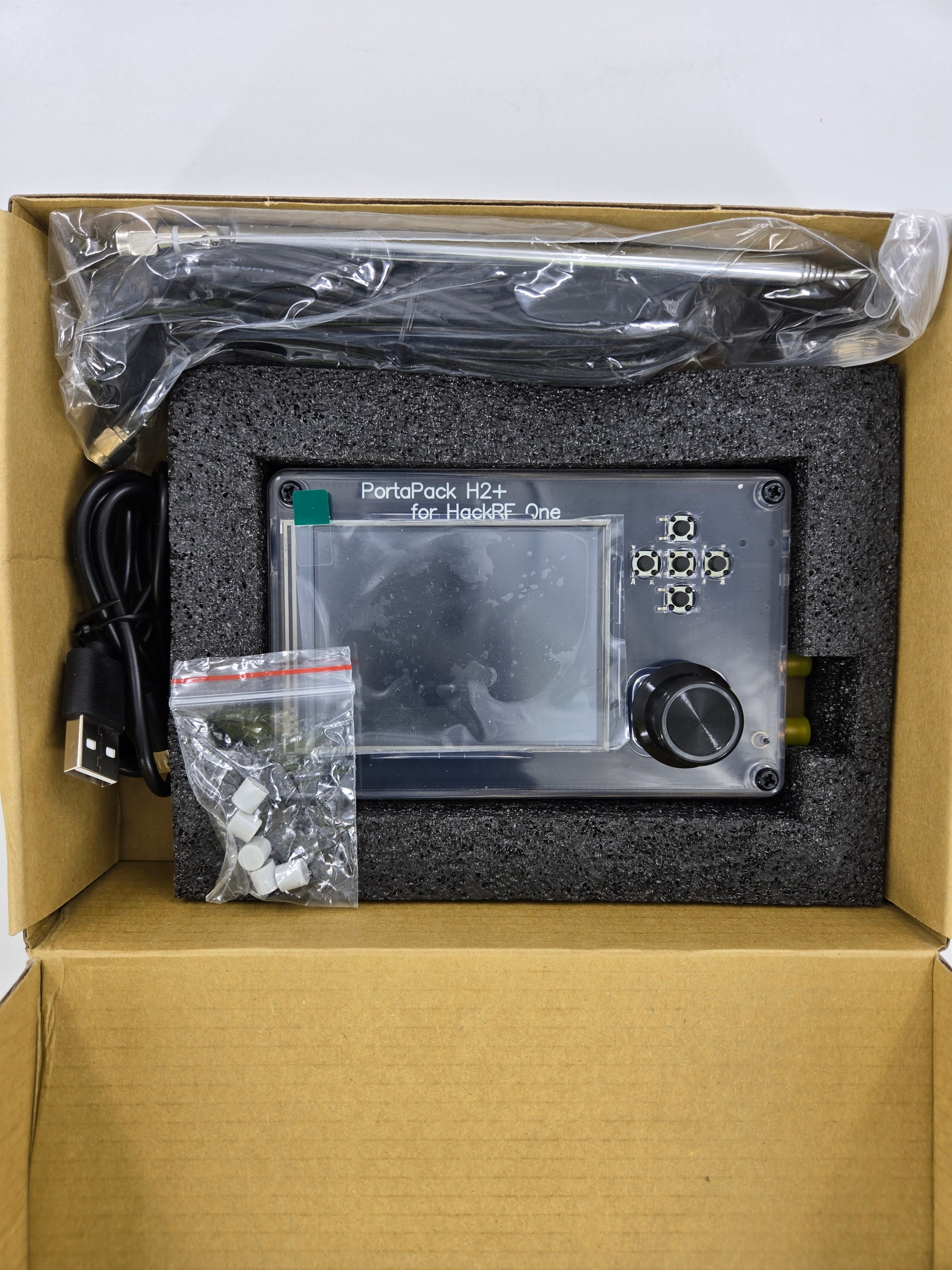

Upgraded PortaPack H2 3.2 Inch LCD + Shell Assembled + Antenna + USB Cable

Hackrf One Description:
- HackRF One is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz.
- Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

Hackrf One Specifications:
- 1 MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- For GNU Radio, SDR#, and the like
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware
- HackRF One 1 MHz to 6 GHz SDR platform software defined radio development board

Description:
The official firmware created for the PortaPack has several decoders and transmitters built into it, but the third party 'Havoc' firmware is really what you'll want to use with it since it contains many more decoders and transmit options.

Progress of Work:
1. It has completed the program validation prototype.
2. The latest documents in 2017, May are based on improvements.

Catching and Replay:
- One of the best things about the PortaPack is that it makes catching and replay of wireless signals like those from ISM band remote controls extremely easy.
- To create a catching. You just need to enter the "Catching" menu, set the frequency of the remote key, press the red 'R' Record button and then press the key on the remote.
- Then stop the recording to save it to a SD Card.
- Now you can go into the Replay menu, select the file that you just recorded and hit play. The exact same signal will be transmitted over the air, effectively replacing your remote key.

Microphone TX:
- Using the 3.5mm audio jack the Portapack can also be used as a standard Push to Talk or voice activated walkie talkie radio. With a microphone plugged into the audio
jack simply hold down the right button to push to talk.
- If required you can also enable multiple CTCSS tone options, as well as tones that look like they enable transmission to wireless headphones

Other Transmitters:
-There are generic OOK transmitter which can be programmed with custom data. This mode might be useful for experimenting with simple key fobs, or things like home, automation switches.
- There are numerous transmit modes implemented that are questionable in most countries and could get you into huge trouble. These transmitters are purely to be used for internal testing with a faraday cage!

Receivers:
By connecting speakers to the Portapack's 3.5mm audio jack you can easily listen in on standard NFM and WFM audio signals. ADS-B reception can be easily enabled on the
PortaPack by selecting the inductor and lightning symbol on the top right. With the bias tee enabled you can receive aircraft.

Hardware Configuration:
- 3.2-inch TFT240*320 screen
- Navigation switch
- Audio output
- Microphone input
- DC 2.1 interface
- 4-layer gold plate
- ROSH process (exported to Europe and America)
